Description
Selling point
1. Economical and practical, suitable for small households
Compact size saves installation space and is convenient for installation on the balcony.
2. Easy to use, single knob control
Single knob design, easy to adjust the water temperature.
3. Efficient combustion, energy saving and gas saving
Adopting efficient combustion technology to improve gas utilization, reduce energy waste, and reduce gas costs.
4. Safe and reliable, safe to use
Flue-type design, combustion exhaust gas is discharged through the flue to avoid exhaust gas backflow affecting indoor air quality.
5. Quick hot water, enjoy a comfortable bath
Instant hot water, no need to wait for a long time, meet the daily bathing needs of family members.
6. Durable material, long service life
Adopt high-quality copper water tank, high heat exchange efficiency, longer service life.
Details
1 Low water pressure starup function.
2 Instant water heating, 3-5 seconds supply hot water.
3 Double ignition pin,Water control automatic impulse ignition by Water-gas interlock valve.
4 Flame out failure protection , Anti-dry combustion.
5 Over heating and 20 minutes timer protection device.
6 Panel in new and good design, Metal with coating/glass/stainless steel optional.
7 Winter-summer switch for gas saving.
8 Good pulse ignitor to keep the battery funtional in one year.

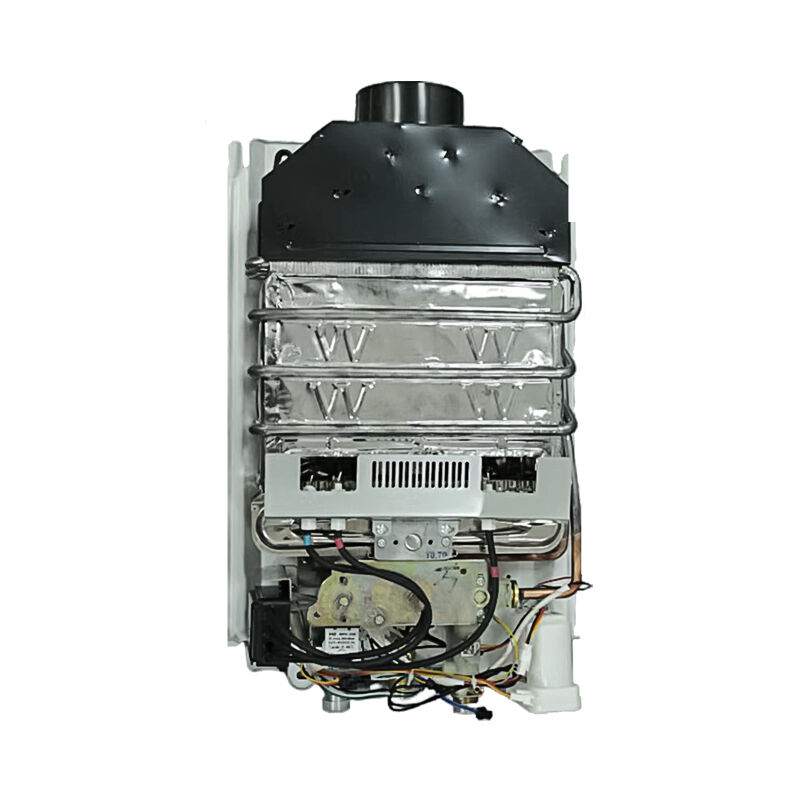

9 Excellent heat exchanger asorbs heat more efficiently.
10 Special Cold and hot water convert.
Specifications
| Product Name | INSTANTANEOUS GAS WATER HEATER(Ltr/min)△T=25K | |||
| Gas Type and Pressure | Y/L.P.G 2800Pa | T/N.G 2000Pa | ||
| Storage / Tankless | Instant / Tankless | |||
| Heating status | Heating ≤ 10 seconds Stability ≤ 10 seconds | |||
| Over Temperature ≤2 | ||||
| Installation | Wall Mounted | |||
| 20M timer- LCD -shower-ODS | Optional | |||
| Thermos Efficiency | >=84% | |||
| Ignition Type | Electrical Pulse Ignition with two ignition pins | |||
| Vent Type | Flue exhaust automatic gas discharge | |||
| Exhaust Pipe Diameter | 5L-7L | 8L | 9-10L | 10-12L |
| Φ90 | Φ110 | Φ120 | Φ130 | |
| Power Supply | DC Battery:2*1.5v | |||
| Water Pressure Range | 0.025MPa-0.8MPa/0.25bar-8bar | |||
| Connection Pipe | Gas inlet | Gl/2" 9.5~11.5mm | ||
| Water inlet | Gl/2" G3/4" | |||
| Water outlet | Gl/2" G3/4" | |||
