Description
Main Functional Features

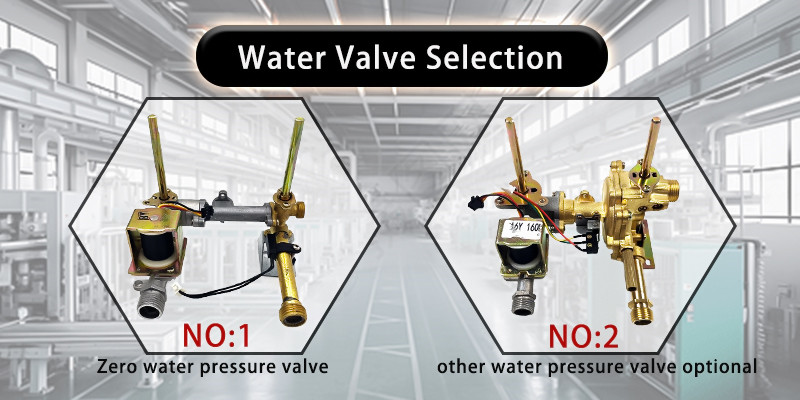

Low Water Pressure Start-up: Designed for areas with low water pressure (e.g., old residential areas or high-rise buildings), this model typically supports start-up at water pressures as low as 0.01MPa–0.025MPa, ensuring normal ignition and use even with minimal water flow.

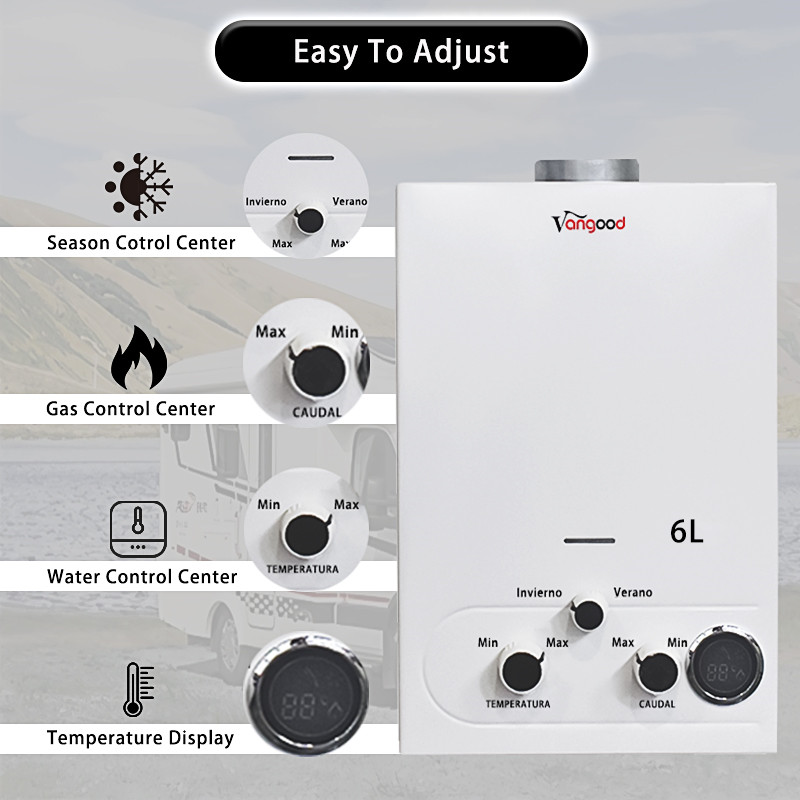

Mechanical Control and Temperature Regulation: Most 6L flue-type water heaters use mechanical controls (e.g., summer/winter mode switches) to adjust water temperature by regulating the gas valve and water flow. Some advanced models also feature basic temperature stabilization functions.

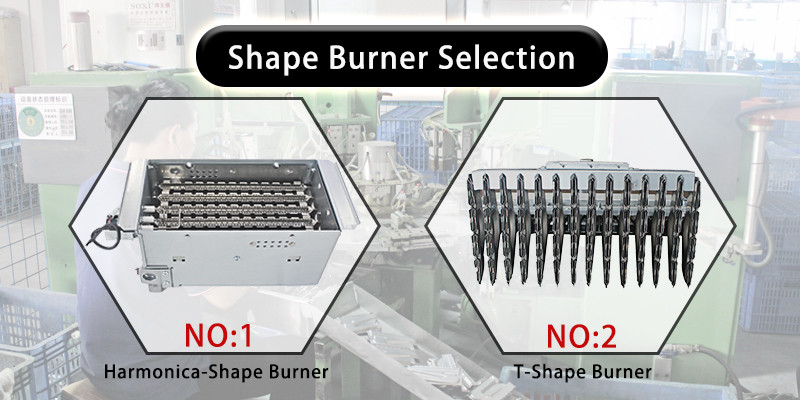

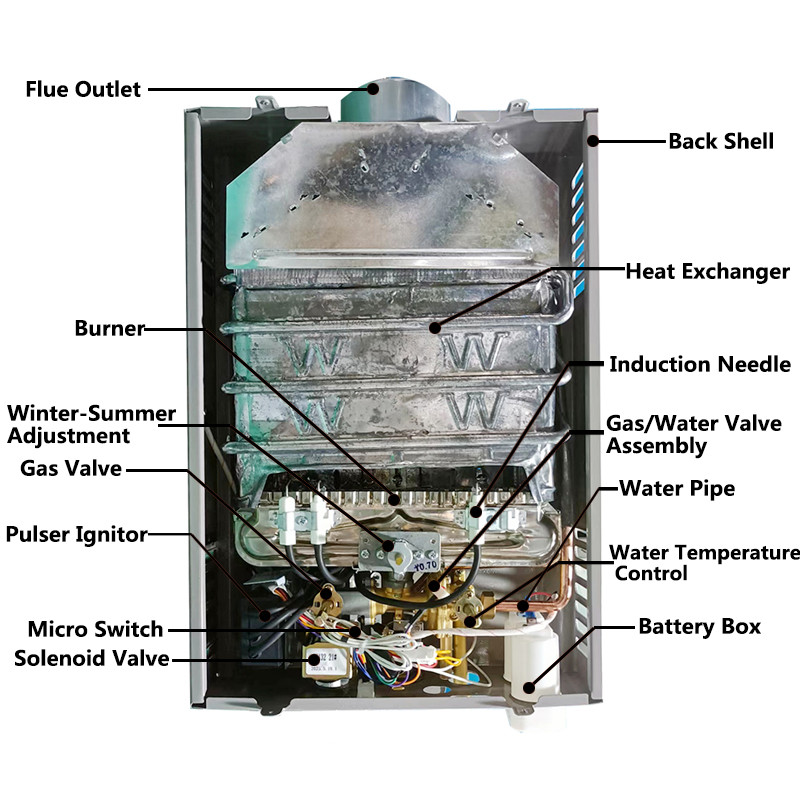

Energy-Saving Design: Operates without electricity by utilizing natural exhaust instead of forced fan ventilation. Additionally, the burner design (e.g., a 3-row 250mm mouth organ burner) promotes efficient gas combustion.
Safety Protection System
To ensure safe operation, the product is typically equipped with multiple safety measures:
Flameout Protection: In case of accidental flame extinguishment, an electromagnetic valve automatically cuts off the gas supply to prevent leakage.
Overheating and Dry-Burning Protection: Automatically shuts down the unit if the water temperature or heat exchanger temperature exceeds safe limits.
Anti-Freeze Function: Certain models (especially those designed for cold regions) include an anti-freeze device to prevent the water tank from freezing and cracking.
Timed Shutdown: Some models feature a 20-minute timed protection mechanism to prevent prolonged continuous use.
Specifications
| Type | Flue type gas water heater |
| Color | White/Silver/Golden... |
| Surface treatment | White Spray coating |
| Capacity | 6-12L |
| Knob(optional) | Summer& winter knob |

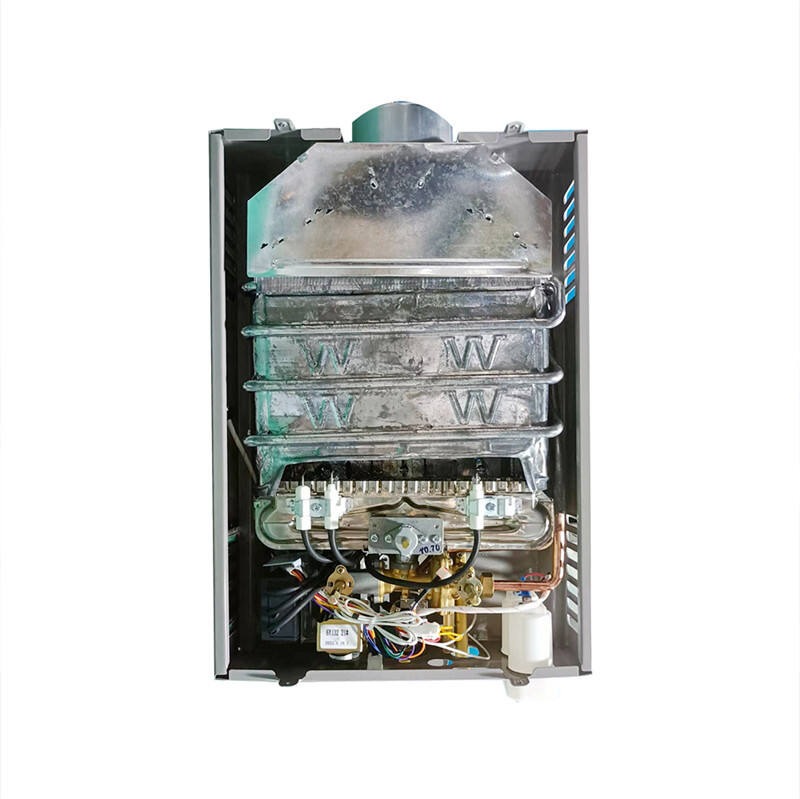

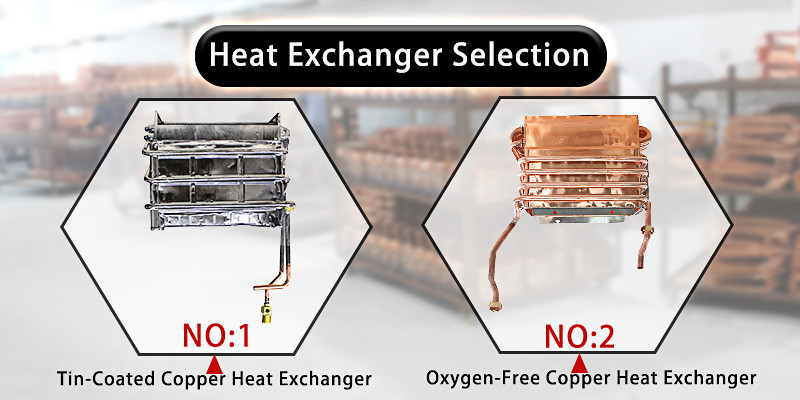

| Exchanger | Brass heater exchanger |
| Valve | Brass valve |
| Timer | 20min auto-flameout timer |
| Protection | Overheat protection |
| Dry burning prevention | |
| Anti-frozen protection |
