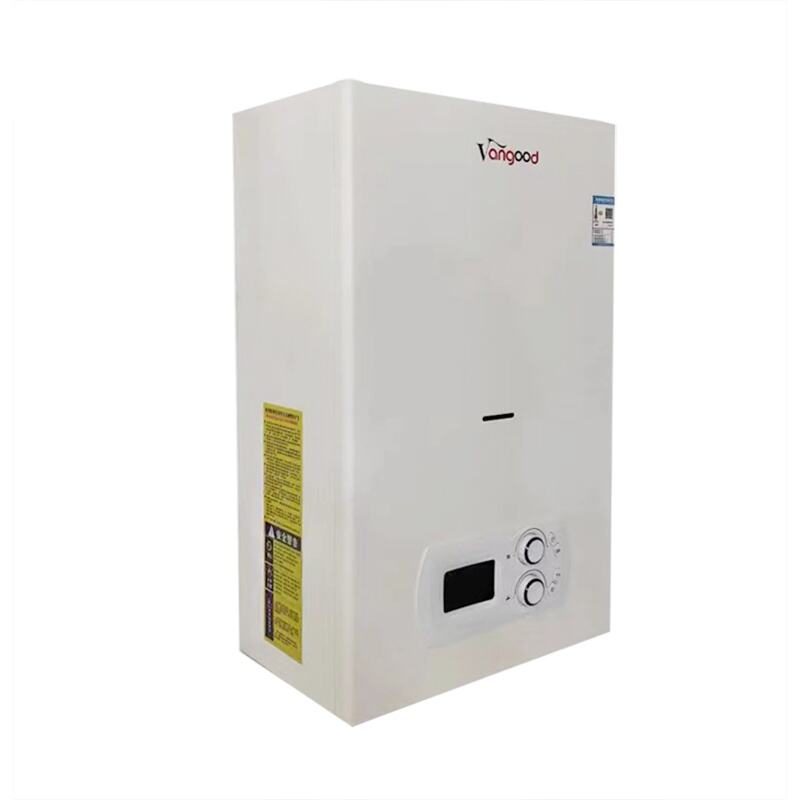

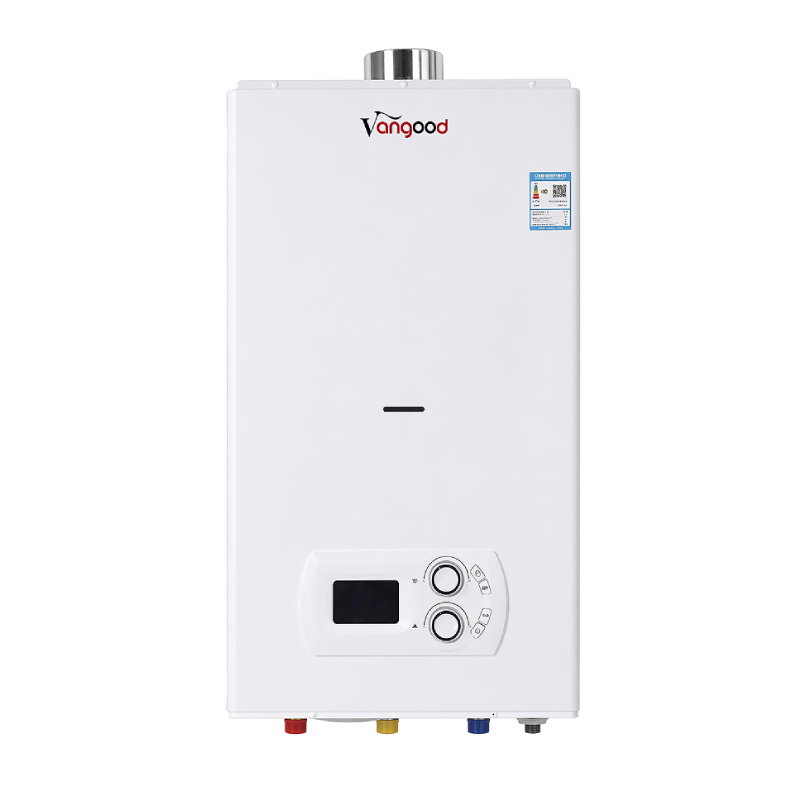

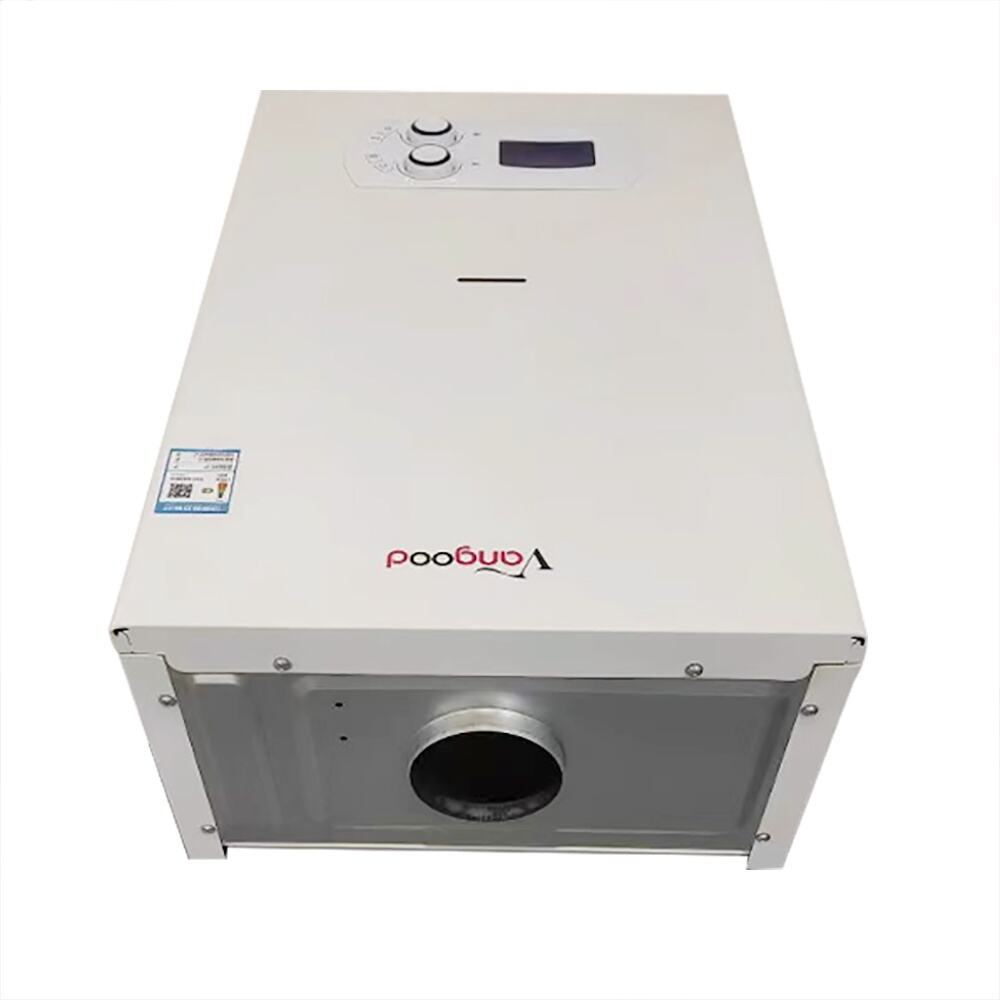

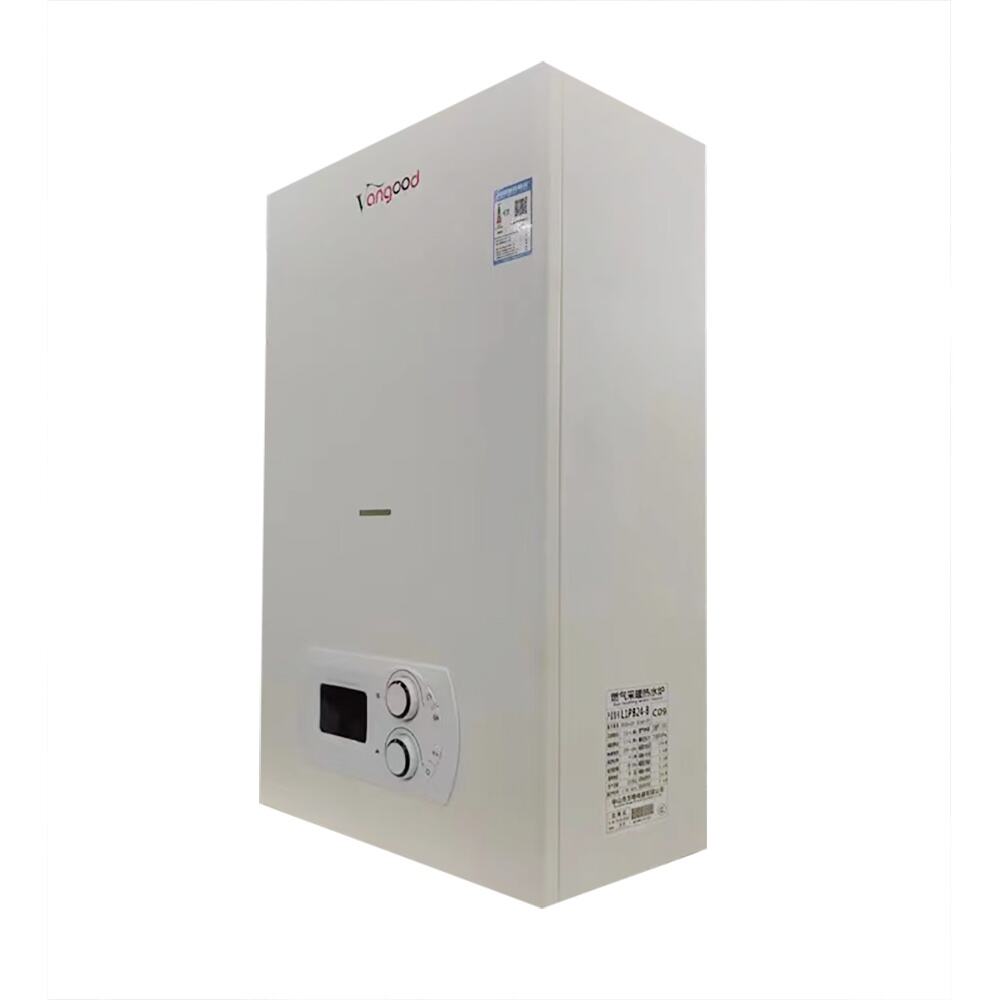

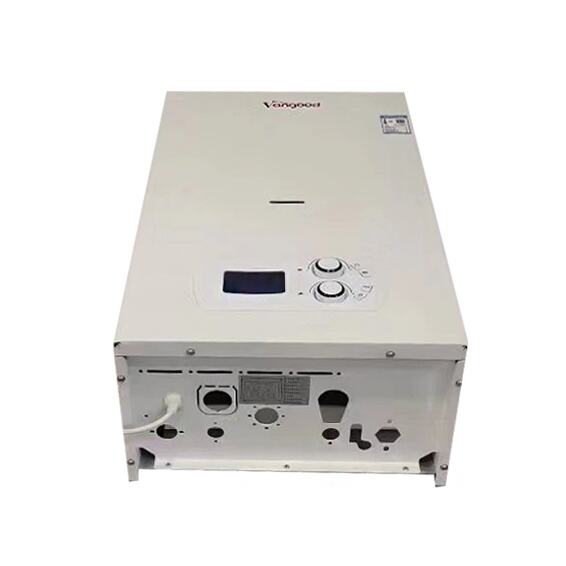

20kW Plate Heat Exchanger Gas Boiler Wall Hung Gas Boiler for Central Heating and Domestic Hot Water Digital Display
Description
| Product General Information | |
| Place of Origin: | Guangdong China |
| Brand Name: | OEM Customized |
| Model Number: | GB-20 |
| Certification: | CE CB ISO9001 |
| Product Commercial Terms | |
| Minimum Order Quantity: | 10Pieces |
| Price: | USD 220.00 – 350.00 per piece |
| Packaging Details: | Standard export carton with foam and wooden pallet reinforcement |
| Delivery Time: | 30–40 working days |
| Payment Terms: | T/T Western Union PayPal |
| Supply Ability: | 3 000 Pieces per Month |
Product Description
Quick Detail
Product Name: 20kW Plate Heat Exchanger Gas Boiler.
Also Known As: Wall Hung Gas Boiler / Plate Heat Exchanger Boiler / Combi Boiler / Central Heating Boiler / Gas Fired Boiler / Condensing Boiler Optional.
Main Application: Residential central heating and domestic hot water supply with plate heat exchanger technology for efficient heat transfer.
Core Specification: 20kW heating output plate heat exchanger system digital control panel LED display wall hung design.
Description
This 20kW plate heat exchanger gas boiler is a high efficiency wall hung heating solution designed to provide both central heating and domestic hot water for residential applications.
The plate heat exchanger technology ensures efficient and rapid heat transfer between the primary heating circuit and the domestic hot water circuit providing instant hot water on demand with minimal heat loss.
With a powerful 20kW heating output this boiler is suitable for apartments small to medium sized homes and commercial spaces requiring reliable central heating and hot water supply.
The digital control panel with LED display allows users to easily monitor and adjust heating temperature hot water temperature and system pressure with intuitive operation.

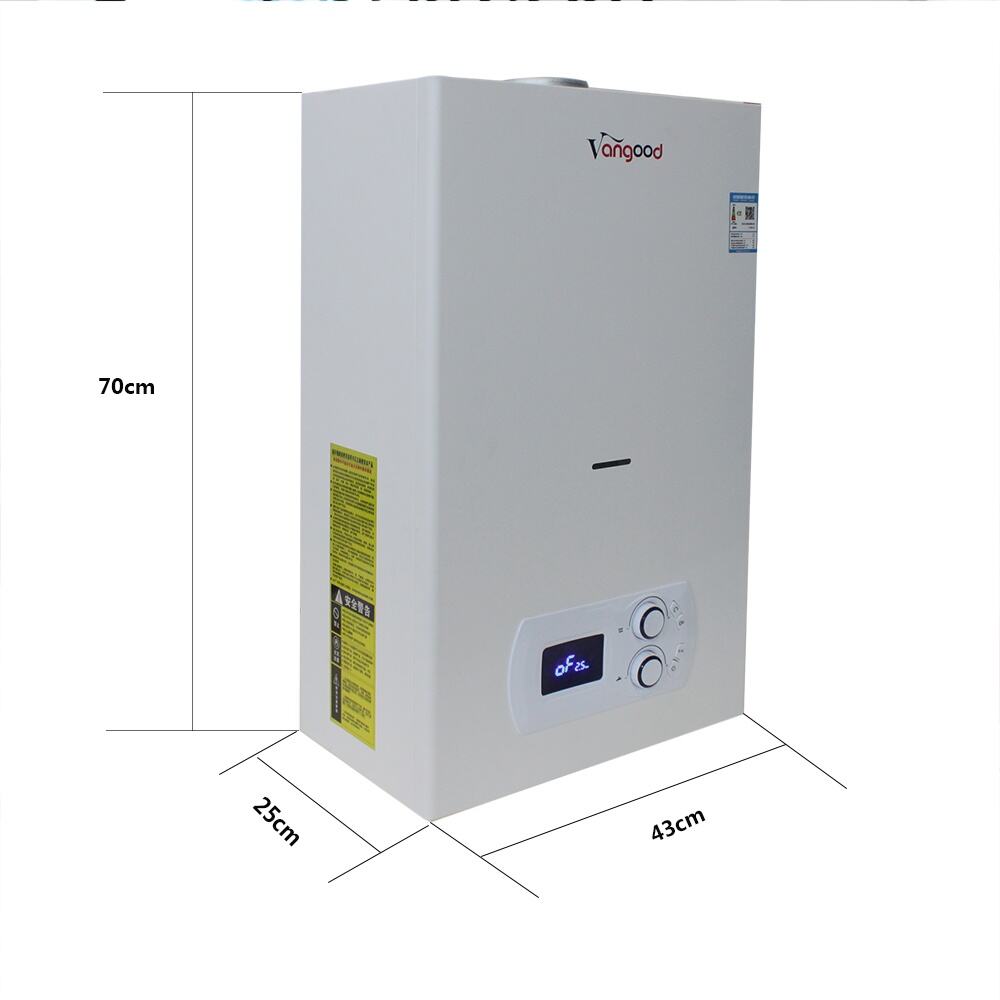

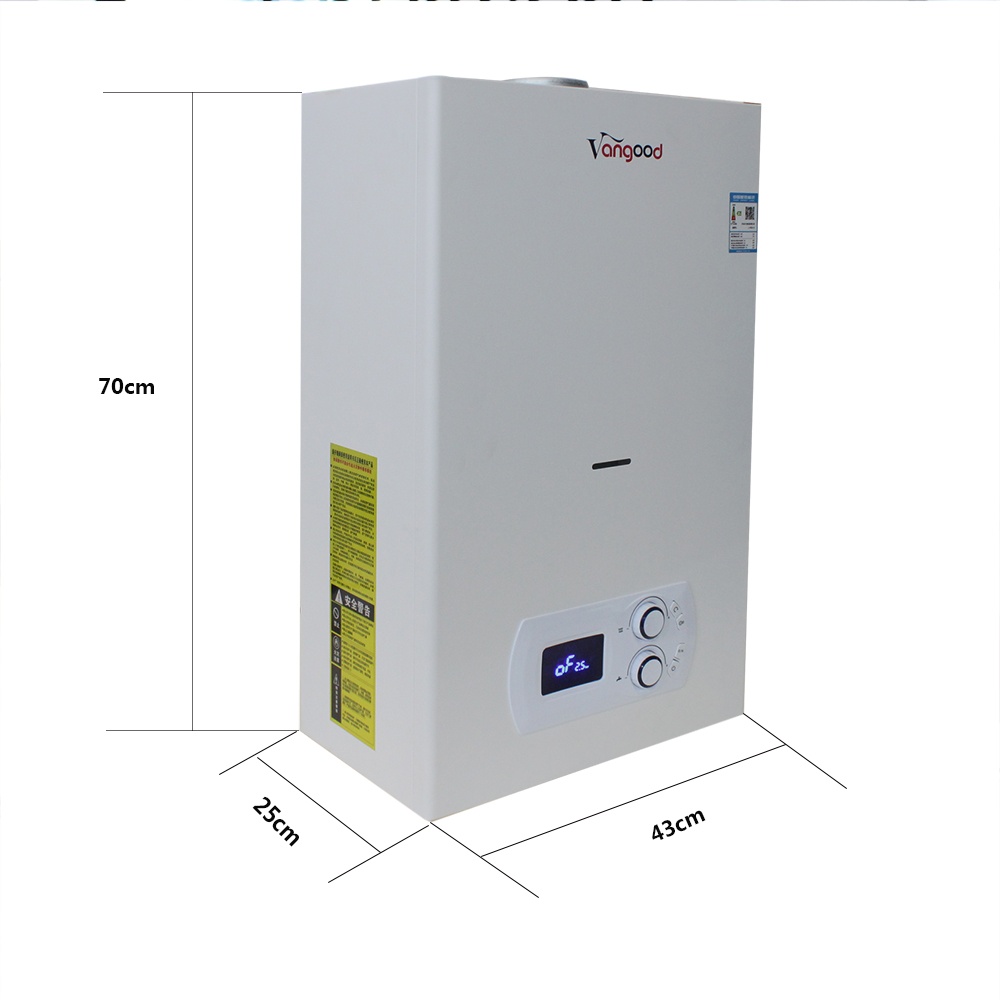

The compact wall hung design saves valuable floor space while providing complete heating and hot water functionality in a single unit.
The unit features a built in circulation pump expansion vessel and pressure relief valve for complete system integration and simplified installation.
Advanced combustion technology ensures high thermal efficiency reducing gas consumption and lowering operating costs while maintaining consistent heating performance.
The boiler is equipped with comprehensive safety protections including flame failure protection overheat protection anti freezing protection and automatic pressure relief.
Quiet operation makes this boiler suitable for installation in kitchens bathrooms or utility rooms without causing disturbance to household activities.
Applications
1. Residential Central Heating: Provides warm water circulation for radiator and underfloor heating systems
2. Domestic Hot Water Supply: Delivers instant hot water for bathing washing and kitchen use
3. Apartments and Condominiums: Compact size ideal for multi story residential buildings
4. Small to Medium Homes: 20kW capacity suitable for homes up to 150 square meters
5. Renovation Projects: Perfect replacement for existing wall hung boilers
6. Light Commercial Use: Suitable for small offices shops and commercial spaces requiring heating
Specifications
| Specification | Details |
| Product Type | Plate Heat Exchanger Gas Boiler |
| Heating Output | 20kW |
| Domestic Hot Water Output | 20kW |
| Heat Exchanger Type | Stainless Steel Plate Heat Exchanger |
| Primary Heat Exchanger | Copper with anti corrosion coating |
| Efficiency Rating | Up to 92% |
| Control System | Digital Microcomputer Control |
| Display | LED Digital Display |
| Temperature Range Heating | 30°C – 80°C |
| Temperature Range DHW | 35°C – 60°C |
| Rated Gas Pressure | Natural Gas 2000Pa / LPG 2800Pa |
| Water Pressure Range | 0.1 – 0.3 MPa recommended |
| Maximum Operating Pressure | 0.3 MPa |
| Circulation Pump | Built in automatic circulation pump |
| Expansion Vessel Capacity | 6L or 8L optional |
| Power Supply | AC 220V 50Hz |
| Ignition Type | Automatic Electric Ignition |
| Safety Features | Flame failure protection overheat protection anti freezing protection pressure relief protection pump anti locking protection |
| Installation | Wall Mounted Indoor Installation |
Competitive Advantage
Plate Heat Exchanger Technology: Provides rapid and efficient heat transfer for instant domestic hot water with minimal heat loss.
20kW Heating Capacity: Ideal for apartments and small to medium homes delivering reliable central heating and hot water.
Compact Wall Hung Design: Saves valuable floor space with complete heating and hot water functionality in one unit.
Digital Control Panel: Easy to use interface with LED display for precise temperature and system monitoring.
High Thermal Efficiency: Advanced combustion technology reduces gas consumption and lowers operating costs.
Complete System Integration: Built in circulation pump expansion vessel and safety components simplify installation.
Quiet Operation: Designed for minimal noise suitable for installation in living spaces.
Comprehensive Safety Protection: Multiple safety features ensure reliable and worry free operation.
Versatile Compatibility: Suitable for both radiator systems and underfloor heating applications.
Easy Maintenance: Accessible internal components and simple service requirements.
